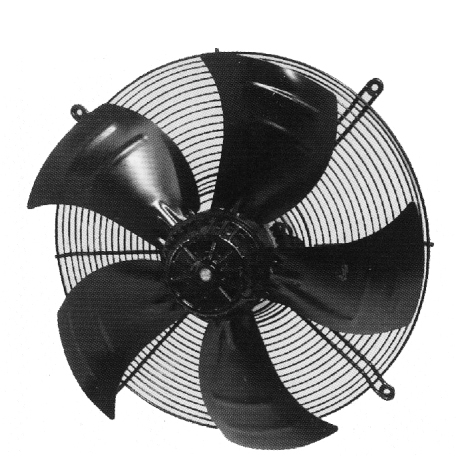

Large Axial Fan - 550 - 4E Series
| Motor Design | Single Phase, Capacitor Driven (External Rotor) |
| Housing Material | Aluminium Die-cast (Painted Black) |
| Impellor | Metal |
| Bearing | Ball |
| Operating Voltage | 185 - 245 VAC |
| Dielectric Strength | 1.5 KV 1 minute |
| Insulation Class | F |
| Insulation Resistance | Above 100M Ohms at 500 VDC |

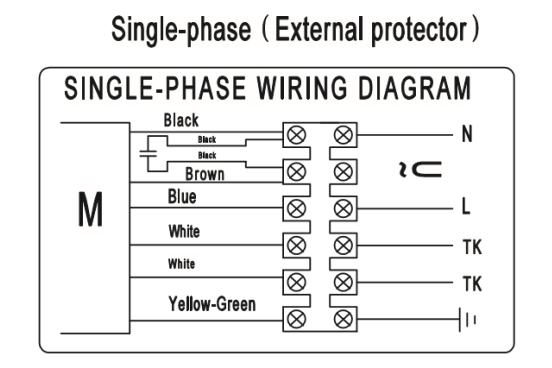

| Connection | Connector PA10 |
| Motor Protection | Thermal Protected 155±5℃ |
| IP Protection | IP 54 |
| Operating Temperature | -30 to +60℃ |
| Net Weight | 11.5 Kgs |
.jpg)
Specifications
| Model | Bearing | Rating Voltage | Frequency | Rated Current | Input Power | Speed | Capacitor | Air Volume | Noise Level |
|---|---|---|---|---|---|---|---|---|---|
| SUPER FLOW | V | Hz | A | W | RPM | μ F/VAC | M³ / h | dB(A) | |
| SF4E-550 | Ball | 230 | 50 | 2.50 | 550 | 1330 | 12/500 | 7500 | 73 |
| SF4E-550 | Ball | 230 | 60 | 3.30 | 725 | 1400 | 12/500 | 8800 | 74 |
