Products

Duct Fans

Duct fans are used for either exhaust air or supply air depending on the need to remove smoke, dust, heat or fumes or to force cooler, cleaner air into any space. Applications for these duct fans include: bathrooms, kitchen range hoods, utility rooms, cafeterias, offices, welding fume extraction, equipment cooling, workshops, auto repair garages for the removal of car exhaust, and in smoking zones.

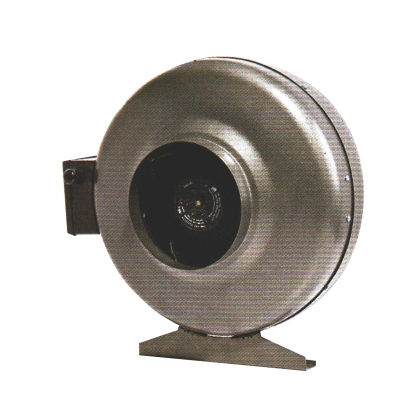

Duct Fans - 100 Series
Motor Design Single Phase, Capacitor Driven (External Rotor)
Housing Material PA6, Rotor Aluminium Casting
Impellor Metal
Bearing Ball
Operating Voltage 185 - 245 VAC
Dielectric Strength 1.5 KV 1 minute
Insulation Class F
Insulation Resistance Above 100M Ohms at 500 VDC
Motor Protection Thermal Protected 155±5℃
IP Protection IP 44
Operating Temperature -30 to +60℃
Net Weight 1.3 Kgs

Specifications

Model Bearing Rating Voltage Frequency Rated Current Input Power Speed Capacitor Air Volume Noise Level
SUPER FLOW   V Hz A W RPM μ F/VAC M³ / h dB(A)
SF2E-100 Ball 230 50 0.32 66 2300 3/500 260 58
SF2E-100 Ball 230 60 0.4 86 2390 5/500 300 61
