Products

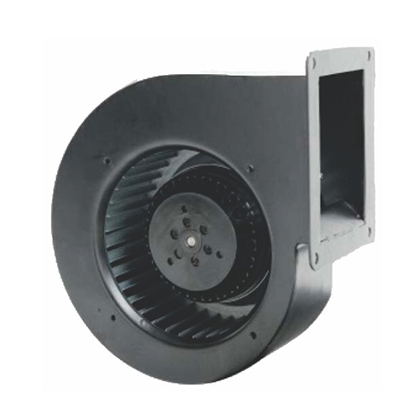

Housing Centrifugal Fans

Housing Centrifugal Fans use forward-curved blades are used wherever a large air volume has to be moved in a tight space. Depending on requirements, the impellers are arranged in single-inlet or dual-inlet configurations.

These Cenrifugal Fans produce low-noise due to optimised flow control and are normally supplied with a scroll housing.

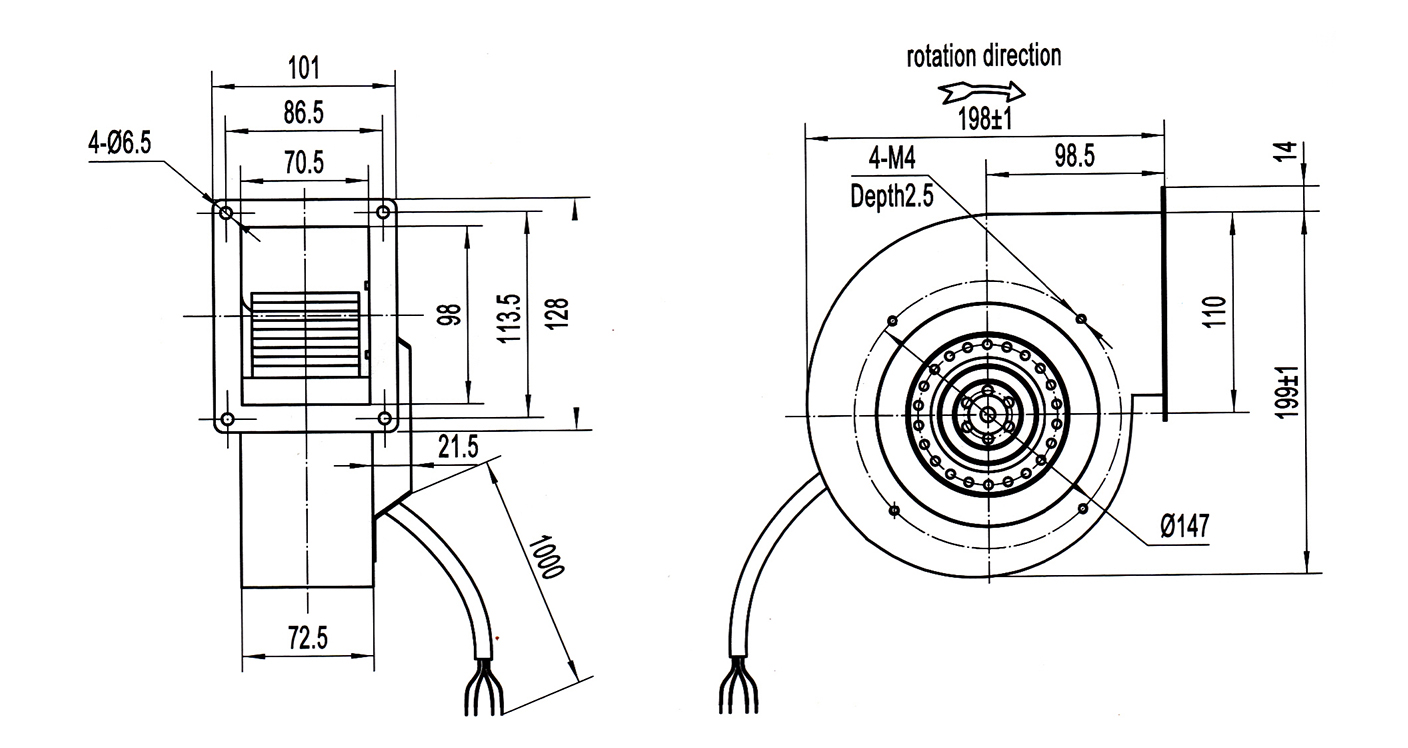

Housing Centrifugal Fans - 140 - 2E Series

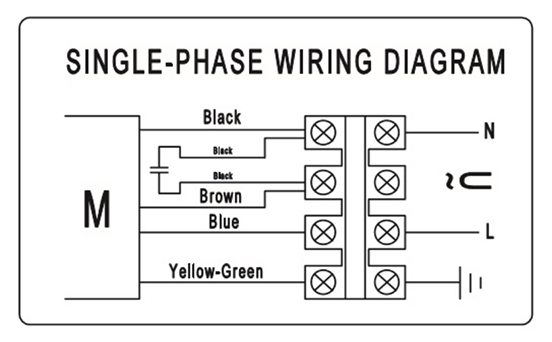

Motor Design Single Phase, Capacitor Driven (External Rotor)
Housing Material PA6, Rotor Aluminium Casting
Impellor Metal
Bearing Ball
Operating Voltage 185 - 245 VAC
Dielectric Strength 1.5 KV 1 minute
Insulation Class F
Insulation Resistance Above 100M Ohms at 500 VDC
Motor Protection Thermal Protected 155±5℃
IP Protection IP 44
Operating Temperature -30 to +60℃
Net Weight 1.3 Kgs

Specifications

Model Bearing Rating Voltage Frequency Rated Current Input Power Speed Capacitor Air Volume Noise Level
SUPER FLOW   V Hz A W RPM μ F/VAC M³ / h dB(A)
SF2E-140 Ball 230 50 0.74 160 2350 4/500 470 67
SF2E-140 Ball 230 60 0.91 205 2340 4/500 460 68
