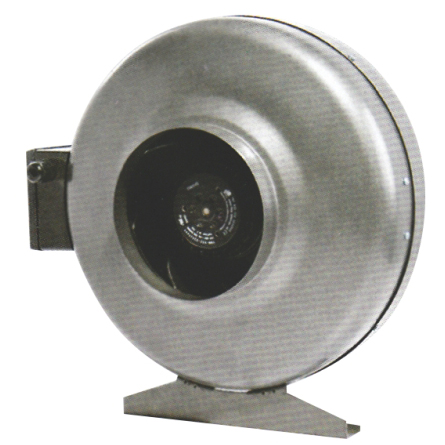

Duct Fans - 315 Series
| Motor Design | Single Phase, Capacitor Driven (External Rotor) |
| Housing Material | PA6, Rotor Aluminium Casting |
| Impellor | Metal |
| Bearing | Ball |
| Operating Voltage | 185 - 245 VAC |
| Dielectric Strength | 1.5 KV 1 minute |
| Insulation Class | F |
| Insulation Resistance | Above 100M Ohms at 500 VDC |
| Motor Protection | Thermal Protected 155±5℃ |
| IP Protection | IP 44 |
| Operating Temperature | -30 to +60℃ |
| Net Weight | 1.3 Kgs |
.jpg)
Specifications
| Model | Bearing | Rating Voltage | Frequency | Rated Current | Input Power | Speed | Capacitor | Air Volume | Noise Level |
|---|---|---|---|---|---|---|---|---|---|
| SUPER FLOW | V | Hz | A | W | RPM | μ F/VAC | M³ / h | dB(A) | |
| SF2E-315 | Ball | 230 | 50 | 0.92 | 202 | 2500 | 7/500 | 1600 | 68 |
| SF2E-315 | Ball | 230 | 60 | 1.2 | 260 | 2540 | 7/500 | 1650 | 70 |
