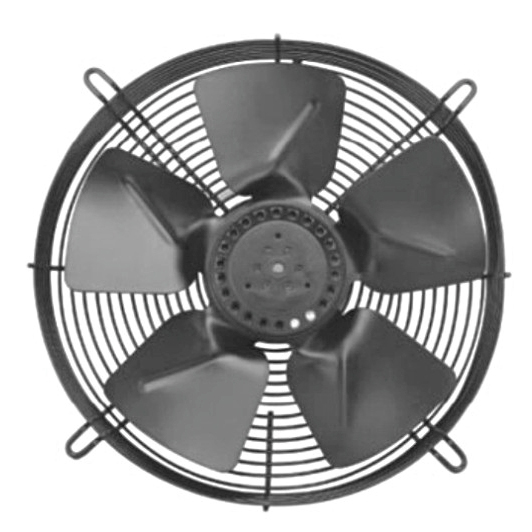

Large Axial Fan - 300 - 4D Series
| Motor Design | Three Phase (External Rotor) |
| Housing Material | Aluminium Die-cast (with Basket Grill) |
| Impellor | Metal |
| Bearing | Ball |
| Operating Voltage | 380 - 440 VAC |
| Dielectric Strength | 1.5 KV 1 minute |
| Insulation Class | F |
| Insulation Resistance | Above 100M Ohms at 500 VDC |
| Connection | Connector PA10 |
| Motor Protection | Thermal Protected 155±5℃ |
| IP Protection | IP 54 |
| Operating Temperature | -30 to +60℃ |
| Net Weight | 3.3 Kgs |
.jpg)
Specifications
| Model | Bearing | Rating Voltage | Frequency | Rated Current | Input Power | Speed | Capacitor | Air Volume | Noise Level |
|---|---|---|---|---|---|---|---|---|---|
| SUPER FLOW | V | Hz | A | W | RPM | μ F/VAC | M³ / h | dB(A) | |
| SF4D-300 | Ball | 415 | 50 | 0.25 | 90 | 1380 | 1750 | 54 | |
| SF4D-300 | Ball | 415 | 60 | 0.26 | 120 | 1640 | 1900 | 55 |
.jpg)
.jpg)
.jpg)
