Products

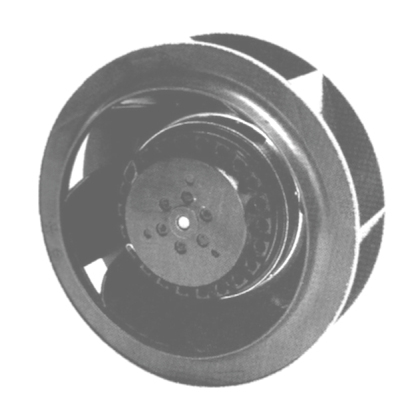

Centrifugal Backward Fans

Backward Centrifugal fans from Excelum Enterprise are available in different specifications suiting the needs of different industries. These Centrifugal fans have backward-curved blades and are used primarily for intake suction.

These fans have very good hydraulic efficiency, low noise level and are ideally suited for high pressure environment. These Centrifugal Fans are used in central air conditioning units or building ventilation systems.

Centrifugal Backward Fans - 175 Series

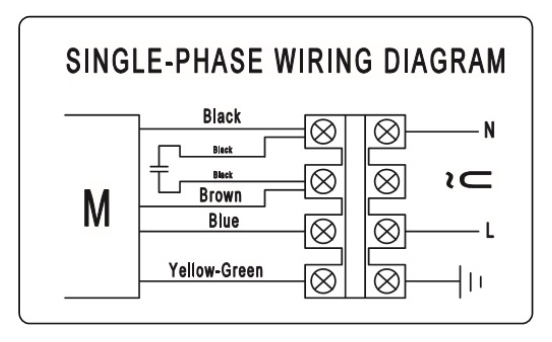

Motor Design Single Phase, Capacitor Driven (External Rotor)
Housing Material PA6, Rotor Aluminium Casting
Impellor Metal
Bearing Ball
Operating Voltage 185 - 245 VAC
Dielectric Strength 1.5 KV 1 minute
Insulation Class F
Insulation Resistance Above 100M Ohms at 500 VDC
Motor Protection Thermal Protected 155±5℃
IP Protection IP 44
Operating Temperature -30 to +60℃
Net Weight 1.3 Kgs

Specifications

Model Bearing Rating Voltage Frequency Rated Current Input Power Speed Capacitor Air Volume Noise Level
SUPER FLOW   V Hz A W RPM μ F/VAC M³ / h dB(A)
SF2E-175 Ball 230 50 0.28 63 2300 2.5/500 430 62
SF2E-175 Ball 230 60 0.36 80 2500 2.5/500 470 64
